Product Characteristics

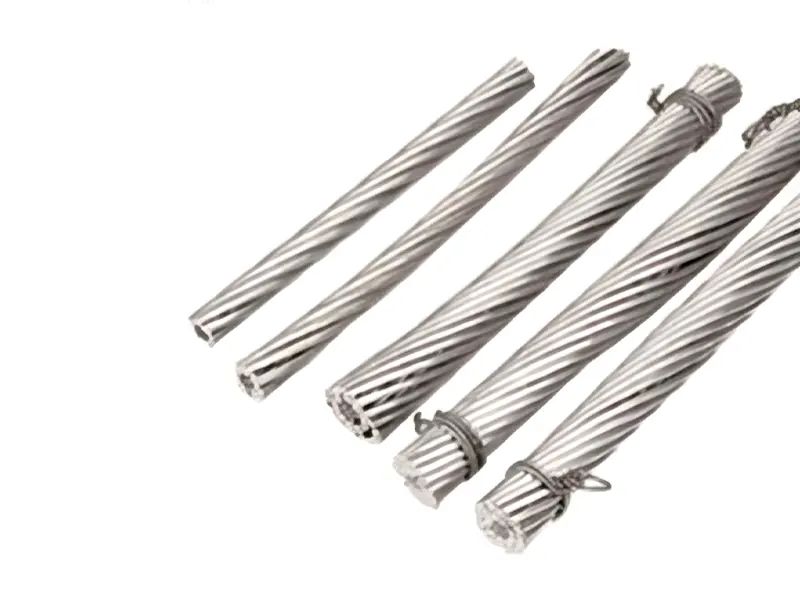

Hot-dip tinned stranded wire is made of copper-clad steel after tinning. It is made of a certain number of hot-dip tinned copper-clad steel single wires stranded together. It has no electrochemical corrosion or galvanic cell effect and does not affect cathodic protection. Tin layer thickness ≥30µm, copper layer thickness ≥0.254mm. (Customized according to user needs)
Technical Parameters
| Specifications | Structural Dimensions
Number of Wires 1, Outer Diameter (mm)) |
Single Wire Copper Layer
(mm) |
Tin Layer Thickness
(µm) |
Cross-sectional Area (mm²) |
| XCL-YX-50CX | 7/3.00 | 0.254 | 30 | 50 |
| XCL-YX-70CX | 7/3.50 | 0.254 | 30 | 70 |
| XCL-YX-95CX | 7/4.20 | 0.254 | 30 | 95 |
| XCL-YX-120CX | 7/4.70 | 0.254 | 30 | 120 |
| XCL-YX-150CX | 7/5.20 | 0.254 | 30 | 150 |
| XCL-YX-185CX | 19/3.50 | 0.254 | 30 | 185 |
| XCL-YX-200CX | 19/3.65 | 0.254 | 30 | 200 |
| XCL-YX-240CX | 19/4.00 | 0.254 | 30 | 240 |
| XCL-YX-300CX | 19/4.50 | 0.254 | 30 | 300 |
| XCL-YX-400CX | 19/5.20 | 0.254 | 30 | 400 |
